Kenali dan Bandingkan Spesifikasi Dozer yang Ada di Pasar Sebelum Berinvestasi

Kami ingatkan bahwa spesifikasi alat berat bukanlah satu-satunya faktor yang perlu dipertimbangkan. Namun, cermati juga faktor after sales service, harga komponen replacement, ketahanan alat (seberapa sering break-down) dan lain sebagainya. Untuk detilnya, bisa Anda baca di halaman Tips & Trik Pembelian Alat Berat.

Komparasi Dozer dengan Operating Weight 18 - 25 Ton

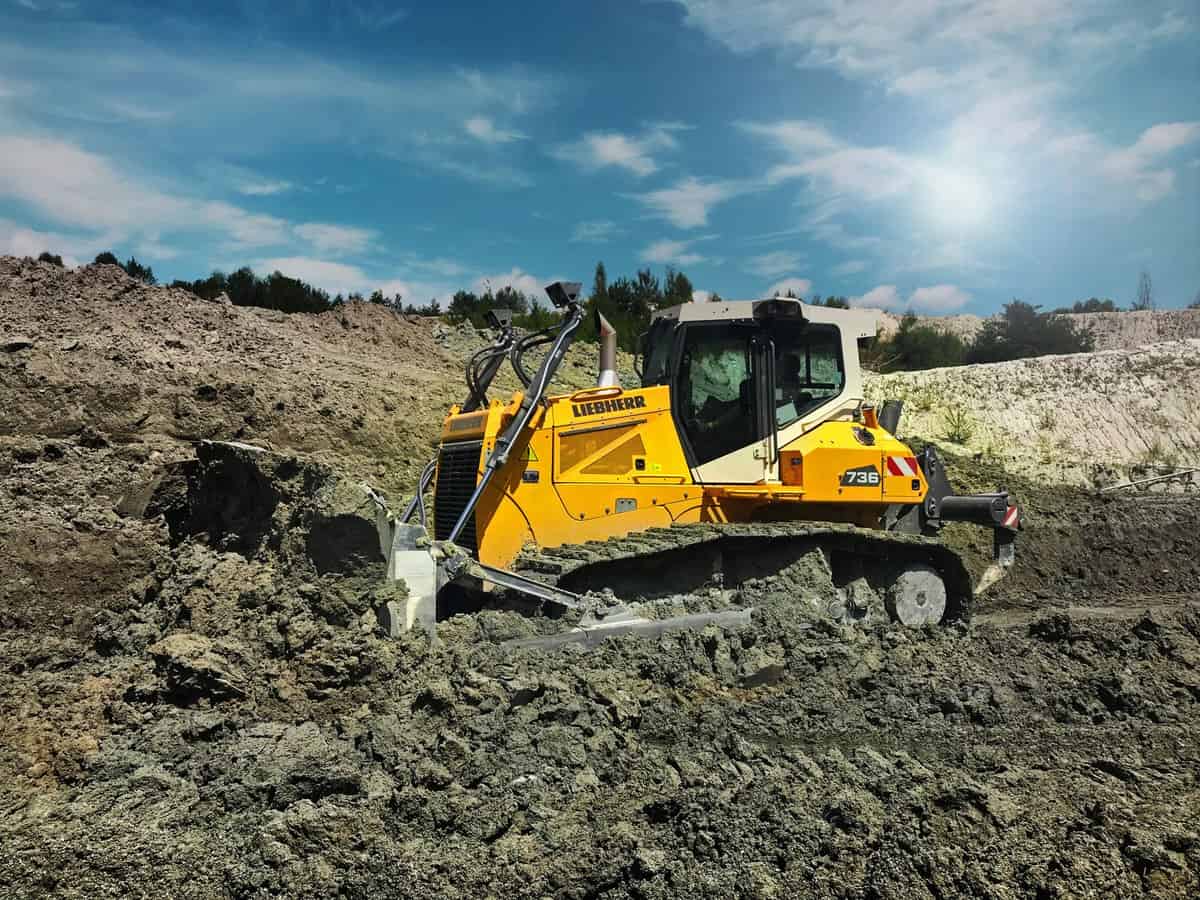

Liebherr Dozer PR 736 G8

  • Liebherr Diesel engine: D 934 EVO Emission regulations according to 97/68/EC
  • Engine Rated Power (net – SAE J1349): 160 kW / 214 HP
  • Engine Maximum Power (net – SAE J1349): 175kW/235HP
  • Displacement: 7.0 l/427 in3
  • Engine Design: 4 cylinder in-line engine, water cooled, turbocharged, air-to-air intercooler
  • Engine Rated Speed: 1,900 rpm
  • Fuel Capacity: 430 L
  • Cooling System Fluid Capacity: 41 L
  • Hydraulic tank: 111 L
  • Engine oil, with filter: 29 L
  • Operating weight: 21,200 – 25,500 kg
  • Ground pressure: 0.36 / 5.12 – 0.60 / 8.53 (kg/cm2 / psi)
  • Blade capacity, ISO 9246: 4.78 – 5.56 m3
  • Height of blade: 1,250 – 14,00 mm
  • Width of blade: 3,372 – 4,210 mm
  • Lifting Height: 1,216 – 1,267 mm
  • Digging depth: 511 – 665 mm
  • Transmission system: Infinitely variable hydrostatic travel drive, independent drive for each track
  • Speed range 1: 0–6.5 km/h/4.0 mph (forward & reverse)
  • Speed range 2: 0–8.5 km/h/5.3 mph (forward & reverse)
  • Speed range 3: 0–11.0 km/h/6.8 mph (forward & reverse)
  • Max. : 314 kN
  • at 1.5 km/h/0.9 mph: 277 kN
  • at 3.0 km/h/1.9 mph: 164 kN
  • at 6.0 km/h/3.7 mph: 82 kN
  • at 9.0 km/h/5.6 mph: 55 kN

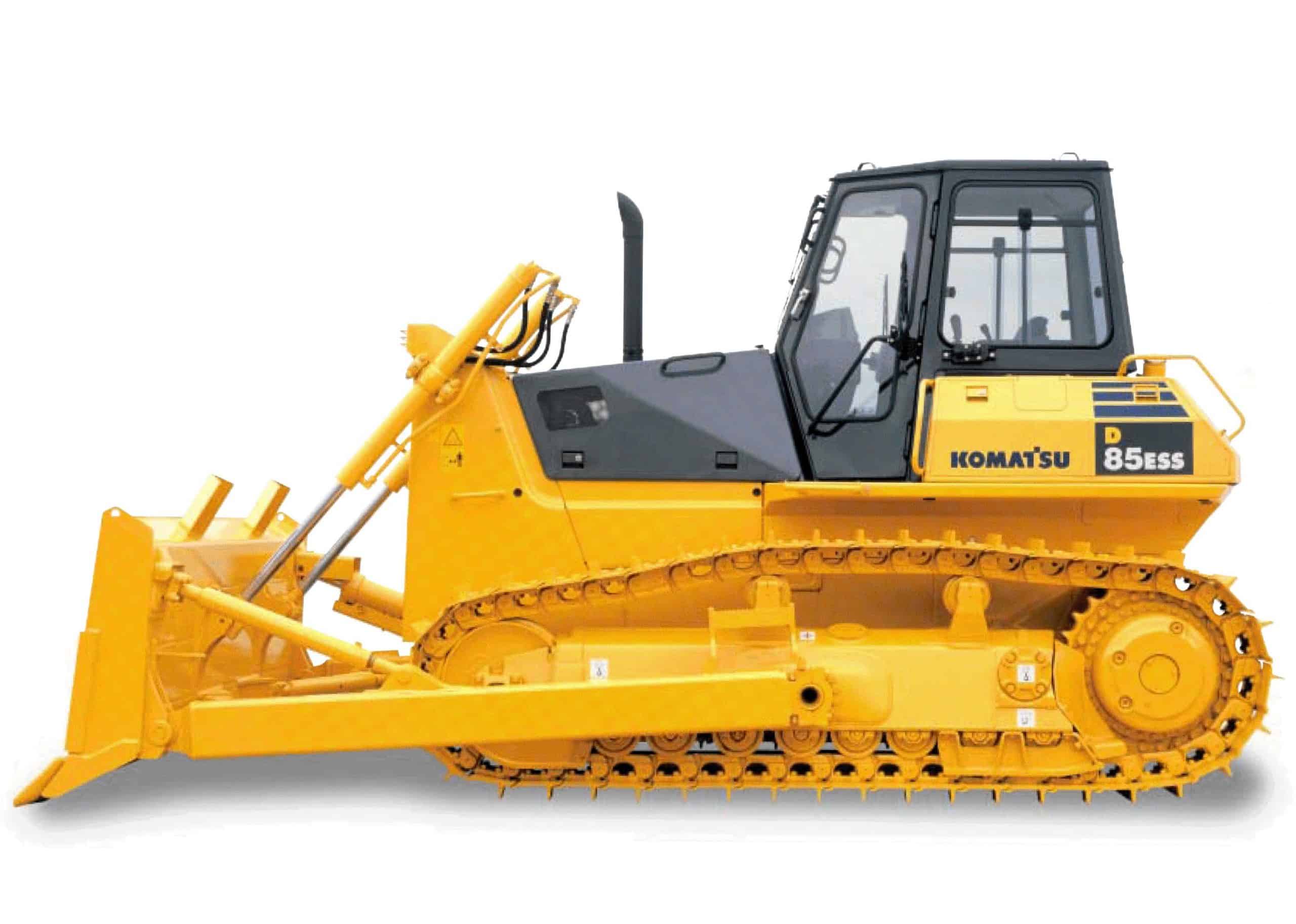

Komatsu D85ESS-2A

  • Engine model: Komatsu S6D125E-2
  • Engine type: 4-strokecycle, water-cooled, direct injection
  • Engine aspiration: Turbocharged
  • Number of cylinders: 6
  • Piston displacement: 11.04 ltr 674 in3
  • Horsepower ISO9249/SAEJ1349: Net 149 kW / 200HP
  • Engine rated RPM: 1950rpm

  • Fuel Capacity: 406 L
  • Cooling System Fluid Capacity: 52 L
  • Engine oil capacity: 38 L
  • Transmission, bevel gear, and steering system: 48 L
  • Operating weight: 20,670 kg
  • Ground pressure: 0.50 kg/cm2 7.25psi
  • Blade capacity: 3.4 – 6.8 m3
  • Height of blade: 1,070 – 1,565 mm
  • Width of blade: 3,620 – 4,370 mm
  • Max. lift above ground: 1,070 – 1,255 mm
  • Max. drip below ground: 485 –  590 mm

Komatsu’s TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 1-phase torque converter and a planetary gear, multiple-disc clutch transmission which is hydraulically actuated and force-lubricated for optimum heat dissipation.

  • 1st travel speed: forward 0–3.9 km/h
  • 2nd travel speed: forward 0–6.8 km/h
  • 3rd travel speed: forward 0–10.6 km/h

Max.: 220 kN

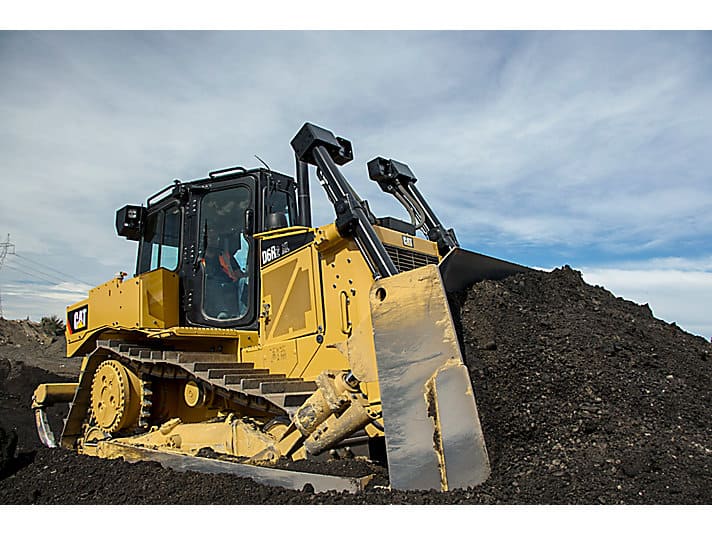

Caterpillar D6R2

  • Engine Model: Cat C9
  • Engine Power – Net: 148 kW / 198.47 hp
  • Rated engine speed at 2,200 rpm
  • Emissions: Meets U.S. EPA Tier 2/EU Stage II equivalent and Certified to China Non-road II emission standards
  • Fuel Tank: 424 L
  • Operating weight: 18,984 – 21,661 kg
  • Ground presseure: 5 – 9 psi
  • Blade capacity: 3.8 – 5.6 m3
  • Blade width: 3,260 – 4,166 mm
  • Forward travel speed (max.): 11.5 km/h
  • Reverse travel speed (max.): 14.5 km/h
