Kenali dan Bandingkan Spesifikasi Articulated Dump Truck yang Ada di Pasar Sebelum Berinvestasi

Kami ingatkan bahwa spesifikasi alat berat bukanlah satu-satunya faktor yang perlu dipertimbangkan. Namun, cermati juga faktor after sales service, harga komponen replacement, ketahanan alat (seberapa sering break-down) dan lain sebagainya. Untuk detilnya, bisa Anda baca di halaman Tips & Trik Pembelian Alat Berat.

Komparasi Articulated Dump Truck dengan Payload 38 Ton - 40 Ton

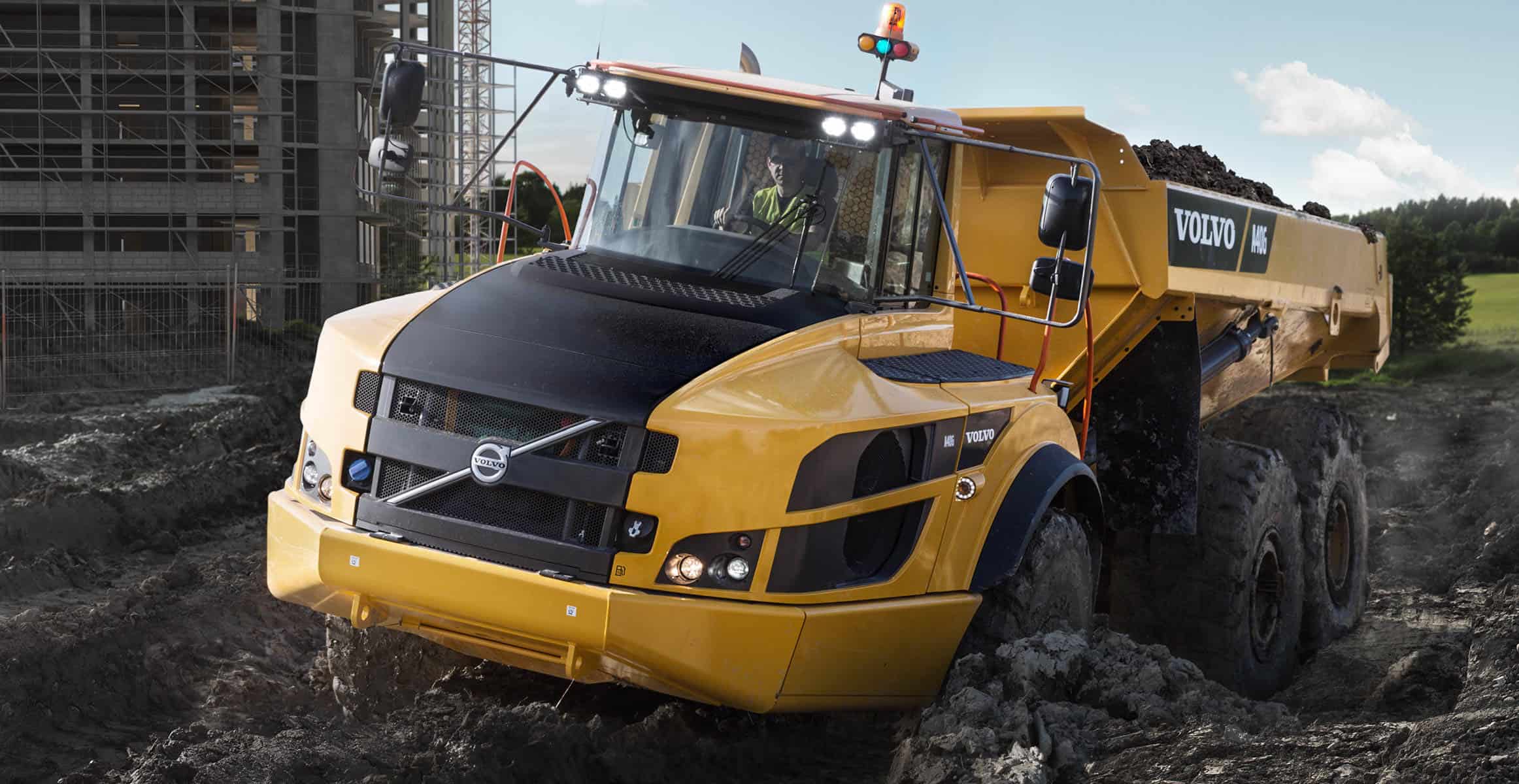

Volvo A40F

  • Number of Cylinders: 6
  • Engine Make: 2244
  • Engine Model: D13H-A
  • Gross Power: 476 hp
  • Net Power: 465 hp
  • Power Measured @: 1800 rpm
  • Max Torque: 2,524.6 Nm
  • Torque Measured @: 1050 rpm
  • Aspiration: Turbocharged
  • Displacement: 16.1 L
  • Fuel Capacity: 545 L
  • Hydraulic System Fluid Capacity: 262 L
  • Cooling System Fluid Capacity: 95 L
  • Engine Oil Capacity: 54 L
  • Transmission Fluid Capacity: 45.5 L
  • Operating Voltage: 24 V
  • Alternator Supplied Amperage: 80 amps
  • Tire Size: 29.5R25
  • Dump Angle: 70 degrees
  • Lower Time: 10 sec
  • Rated Payload: 39,000 kg
  • Capacity – Struck: 18.4 m3
  • Raise Time: 12 sec
  • Capacity – Heaped: 24 m3
  • Transmission Type: PT2519
  • Number of Forward Gears: 9
  • Number of Reverse Gears: 3
  • Max Speed: 56.4 km/h
  • Front Axle – Empty: 16,550 kg
  • Rear Axle – Empty: 14,250 kg
  • Rear Axle – Loaded: 49,300 kg
  • Total Empty: 30,800 kg
  • Total Loaded: 69,800 kg

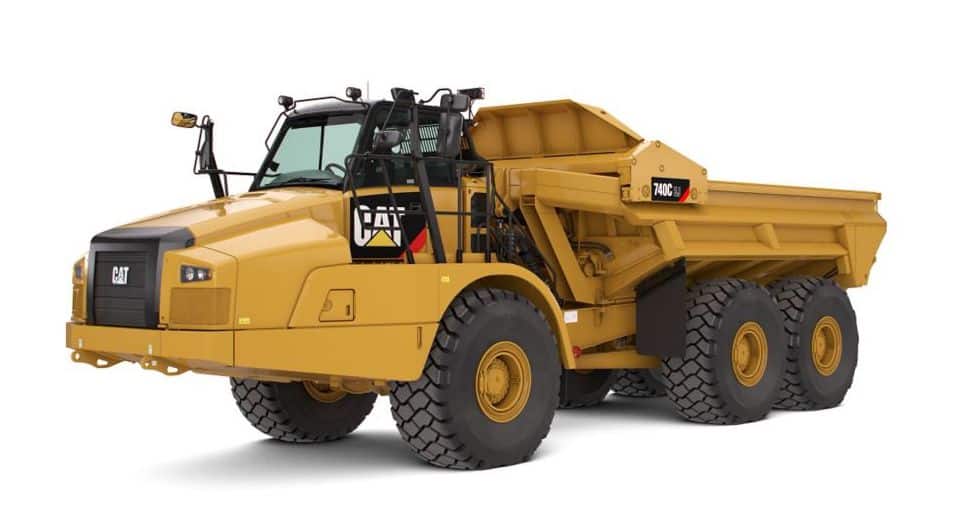

Caterpillar 740C EJ

  • Engine Make: 2236
  • Engine Model: C18 Acert
  • Gross Power: 511 hp
  • Net Power: 496 hp
  • Torque Measured @: 1,200 rpm
  • Max Torque: 2,524.6 Nm
  • Displacement: 18.2 L
  • Fuel Capacity: 550 L
  • Cooling System Fluid Capacity: 95 L
  • Transmission Fluid Capacity: 75 L
  • Brake Cooling Tank: 67 L
  • Tire Size: 29.5R25
  • Rated Payload: 38,101.77 kg
  • Capacity – Struck: 17.97 m3
  • Capacity – Heaped: 23.02 m3
  • Forward – 8: 37.9 km/h
  • Forward – 9: 54.8 km/h
  • Front Axle – Empty: 20,520.1 kg
  • Rear Axle – Empty: 7,649.9 kg
  • Rear Axle – Loaded: 18,200 kg
  • Total Empty: 36,070.2 kg
  • Total Loaded: 74,069.9 kg

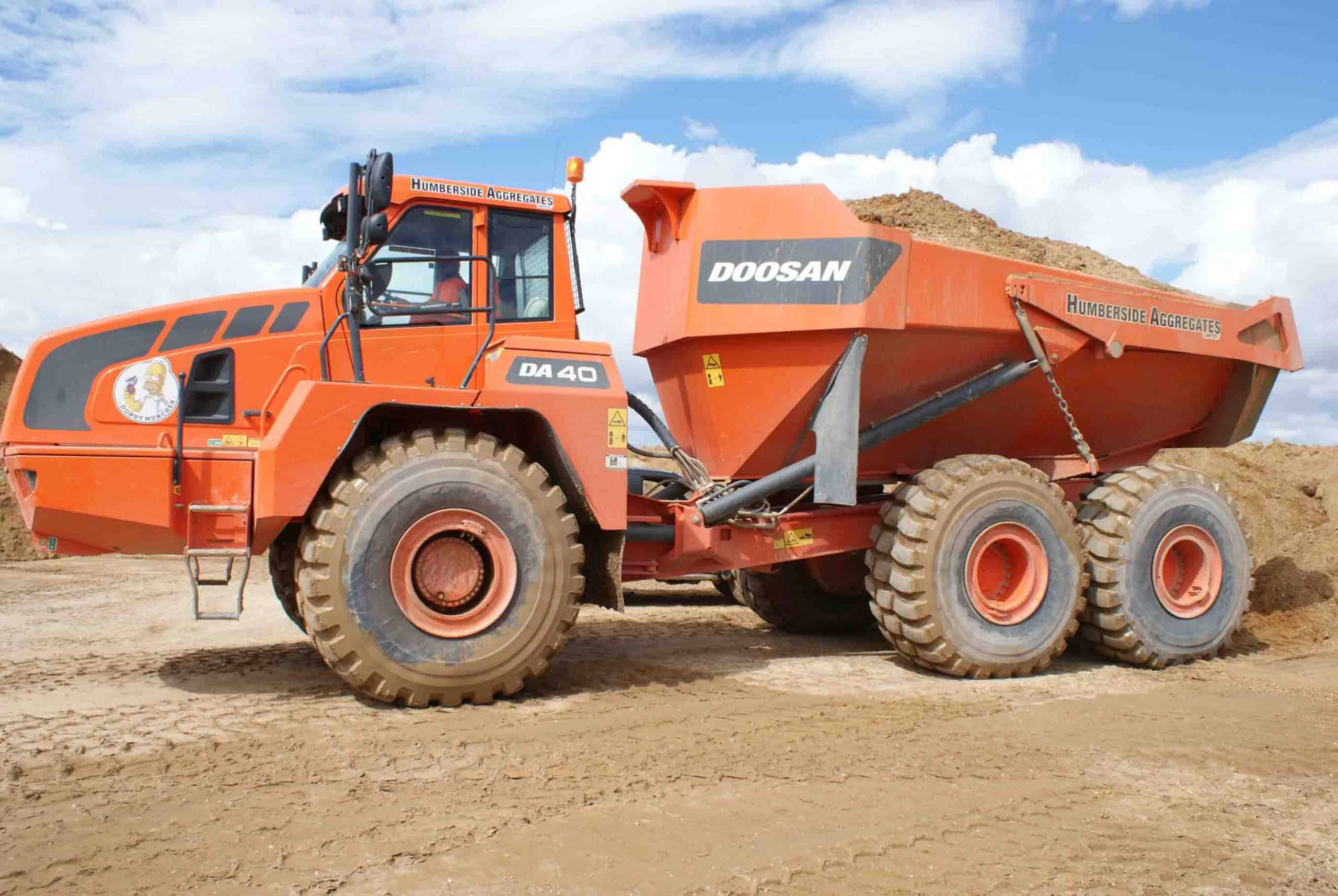

Doosan DA40-5

  • Battery: 2 x 12, 225 AH
  • Number of Cylinders: 6
  • Engine Make: Scania
  • Engine Model: DC 13
  • Gross Power: 493 hp
  • Net Power: 483 hp
  • Power Measured @: 1,900 rpm
  • Max Torque: 2,372.7 Nm
  • Displacement: 12.7 L
  • Bore: 129.6 mm
  • Stroke: 160.1 mm
  • Alternator: 100 amps
  • Def Tank Capacity: 38 L
  • Fuel Capacity: 530 L
  • Cooling System Fluid Capacity: 50 L
  • Engine Oil Capacity: 44 L
  • Transmission Fluid Capacity: 75 L
  • Rear Diff Fluid Capacity: 46 L
  • Operating Voltage: 24 V
  • Front Diff Fluid Capacity: 13.2 L
  • Tire Size: 29.5R25
  •
  • Rated Payload: 40,000 kg
  • Dump Angle: 70 degrees
  • Number of Forward Gears: 8
  • Number of Reverse Gears: 4
  • Max Speed: 55 km/h
  • Front Axle – Empty: 14,544 kg
  • Front Axle – Loaded: 21,793 kg
  • Rear Axle – Empty: 15,756 kg
  • Rear Axle – Loaded: 48,507 kg

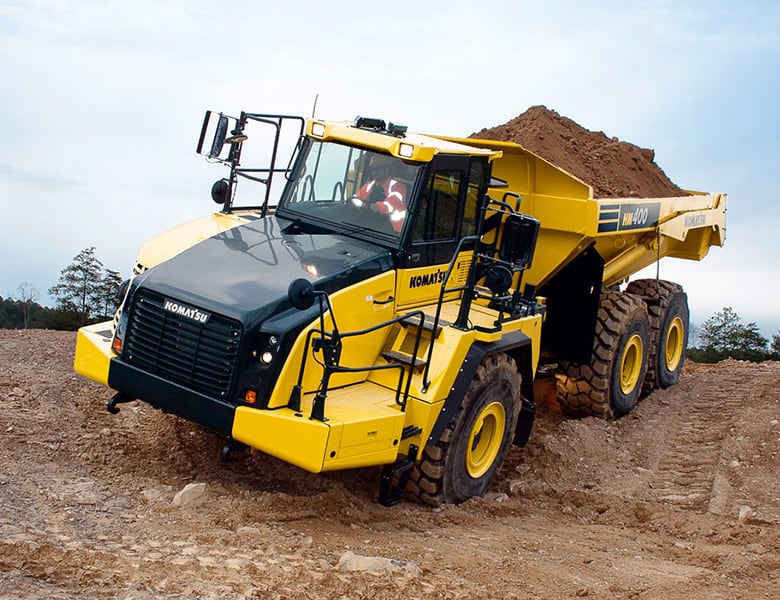

Komatsu HM400-5

  • Number of Cylinders: 6
  • Engine Model: Komatsu SAA6D140E-7
  • Gross Power: 473 hp
  • Net Power: 466 hp
  • Rated rpm: 2,000 rpm
  • Aspiration: Komatsu variable geometry, turbo-charged, after-cooled, cooled EGR
  • Piston Displacement: 15.24 L
  • Fuel Tank:  525 L
  • DEF Tank: 34 L
  • Engine Oil: 50 L
  • Torque converter, transmission and retarder cooling 125 L
  • Tire Size: 29.5 R25
  • Rated Payload: 40,000 kg
  • Capacity – Struck: 18.2 m3
  • Capacity – Heaped: 24 m3
  • Torque Converter: 3-elements, 1-stage, 2-phases
  • Transmission: Full-automatic, counter-shaft type
  • Speed range: 6 speeds forward and 2 reverse
  • Max Travel Speed: 55.9 km/h
  • Empty Weight: 35,055 kg
  • Gross Vehicle Weight: 75,135 kg
  • Front-axle empty: 56.9% (of empty weight)
  • Center-axle empty: 23.6% (of empty weight)
  • Rear-axle Empty: 19.5% (of empty weight)
  • Front-axle Loaded: 30.4% (of GVW)
  • Center-axle Loaded: 35.8% (of GVW)
  • Rear-axle Loaded: 33.8% (of GVW)

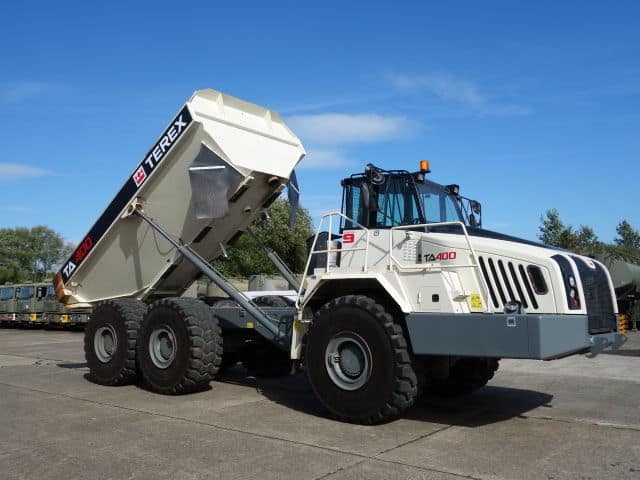

Terex TA400

  • Engine Make: 2246
  • Engine Model: Scania DC13
  • Gross Power: 444 hp
  • Max Torque: 1,663
  • Fuel Capacity: 494 L
  • Tire Size: 29.5R25
  • Rated Payload: 38,000
  • Capacity – Struck: 17.44 m3
  • Capacity – Heaped: 23.17 m3
  • Dump Angle: 66 degrees
  • Lower Time: 20.5 sec
  • Raise Time: 20.5 sec
  • Transmission Type: Auto
  • Number of Forward Gears: 6
  • Number of Reverse Gears: 1
  • Max Speed: 67.2 km/h
  • Total Empty: 31,390 kg
  • Total Loaded: 69,389.7 kg

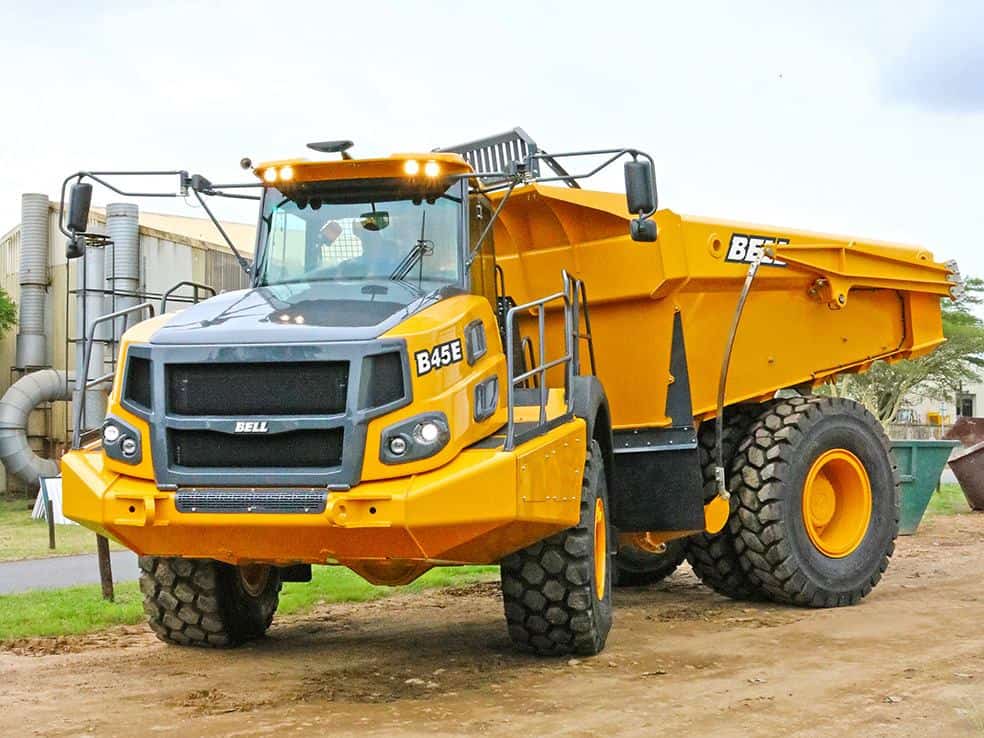

Bell B45E

  • Engine Type: Mercedes Benz OM 471 LA
  • Gross Power: 523 hp
  • Net Power: 495 hp
  • Torque: 2,460 Nm
  • Displacement: 12.8 L
  • Fuel Capacity: 533 L
  • Operating Voltage: 24 V
  • Tire Size: 29.5R25
  • Rated Payload: 41,000 kg
  • Dump Angle: 70 degrees
  • Lowering Time: 6 sec
  • Raise time: 11 sec
  • Number of Forward Gears: 7
  • Number of Reverse Gears: 1
  • Configuration: Fully automatic planetary transmission.
  • Torque Control: Hydrodynamic with lock-up in all gears
  • Front-axle Empty: 16,984 kg
  • Middle-axle Empty: 7,778 kg
  • Rear-axle Empty: 7,564 kg
  • Total-weight Empty: 32,326 kg
  • Front-axle Loaded: 22,109 kg
  • Middle-axle Empty: 25,715 kg
  • Rear-axle Empty: 25,502 kg
  • Total-weight Empty: 73,326 kg
  •
